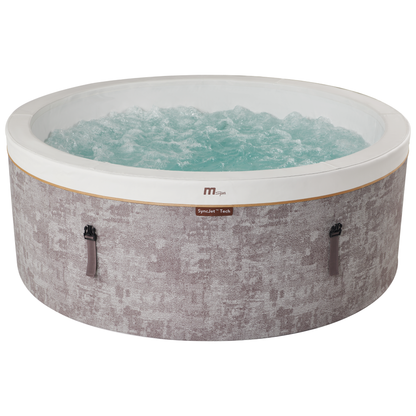

MSpa Cocoon Verto Series 6-Person Rigid Hot Tub | 138 Air Jets, Smart App Control & Insulated Foam Design
MSpa Cocoon Verto Series 6-Person Rigid Hot Tub | 138 Air Jets, Smart App Control & Insulated Foam Design
Couldn't load pickup availability
Share

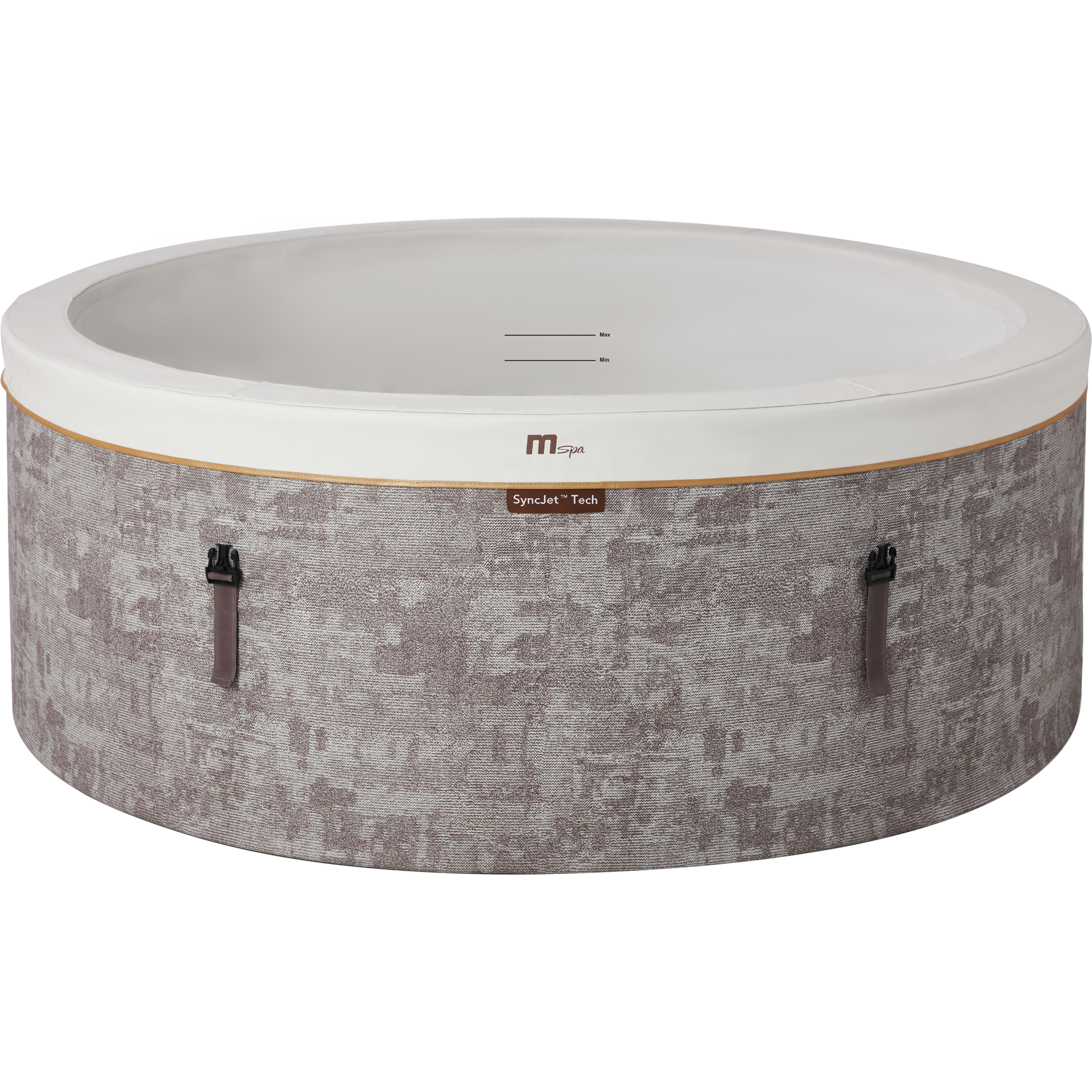

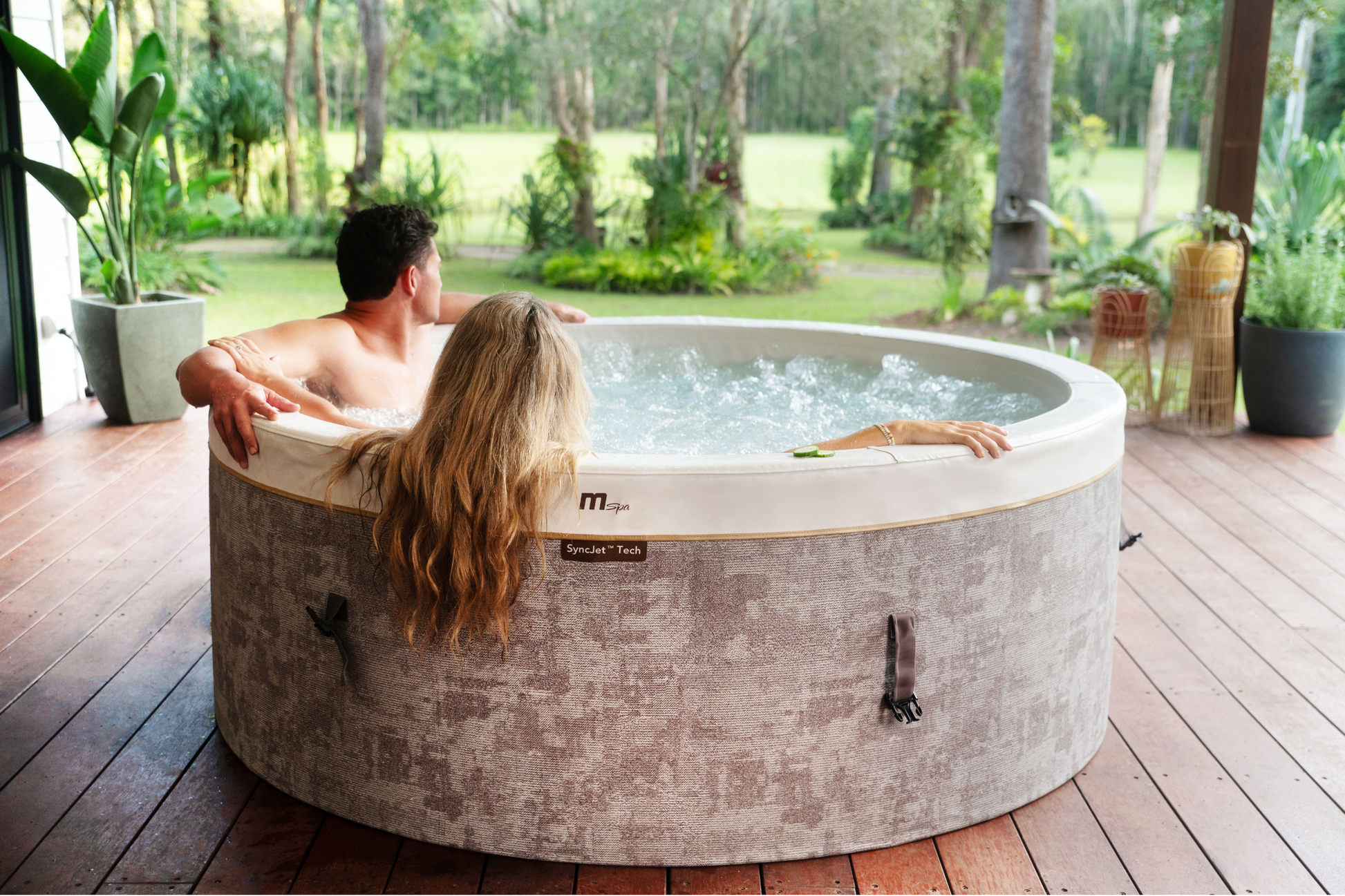

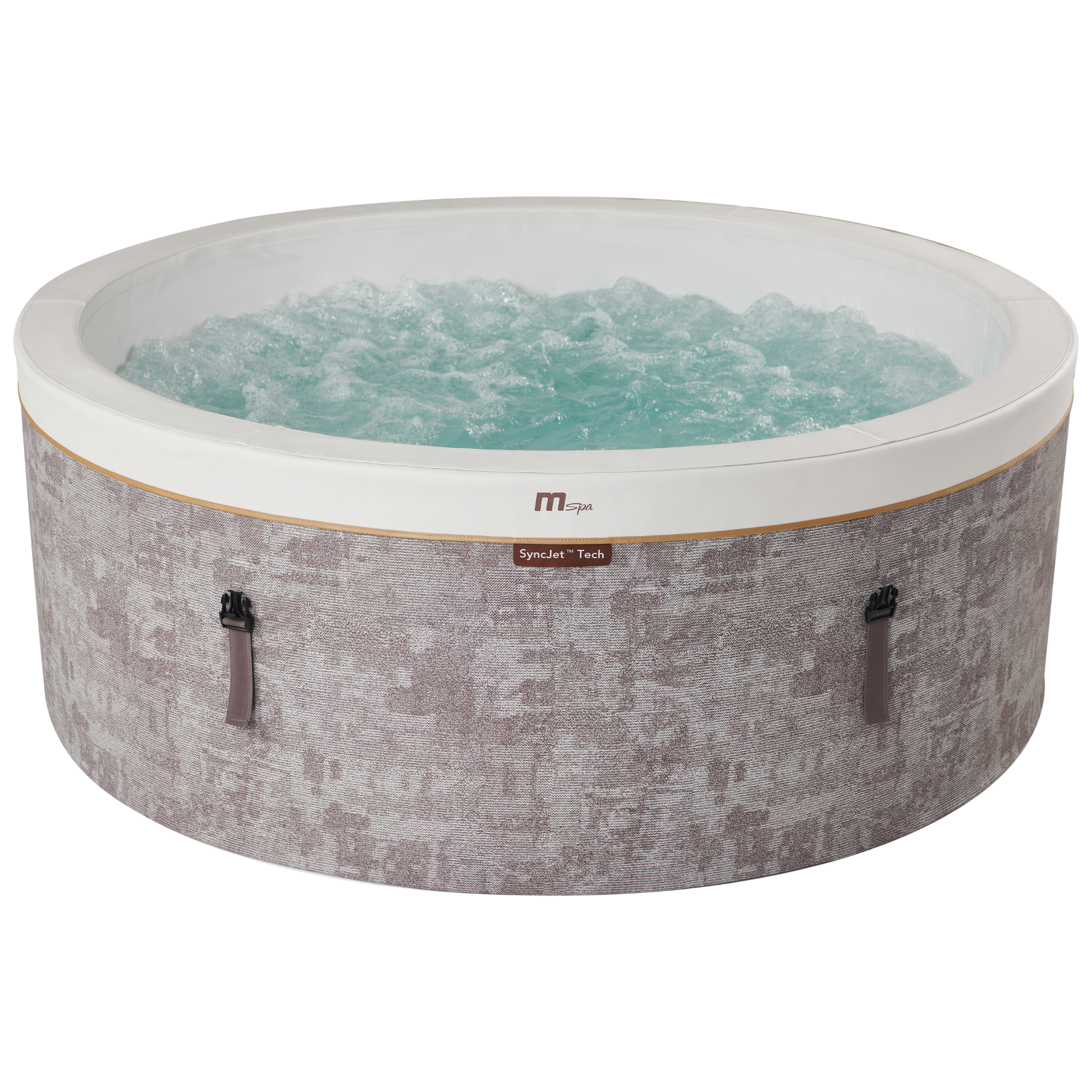

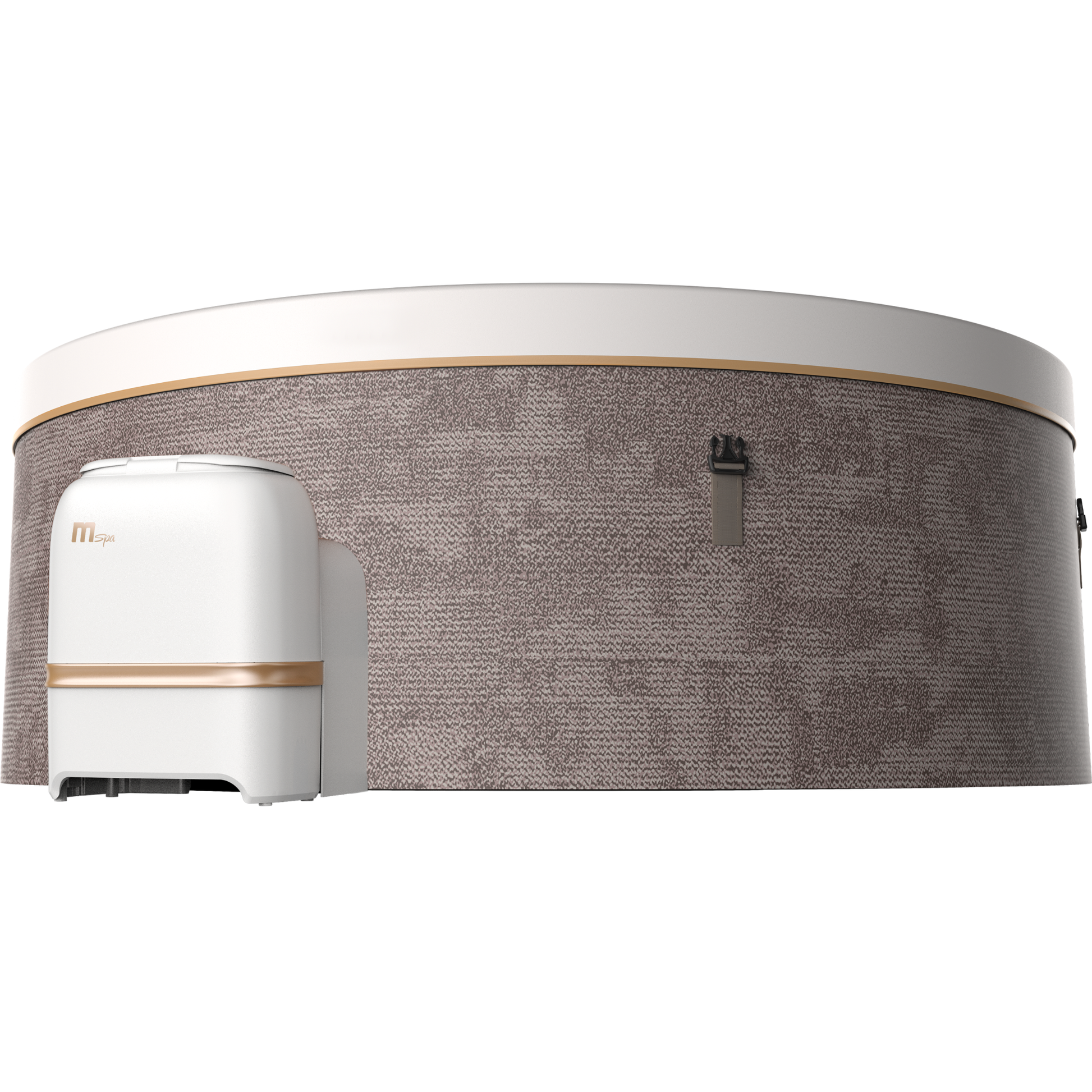

Create a welcoming outdoor retreat with the MSpa Cocoon Verto Series 6-Person Rigid Hot Tub, a thoughtfully designed spa that combines the comfort of a bubbling massage with the practicality of an insulated, lightweight structure. Featuring 138 air jets, a distinctive textile-inspired exterior, and space for up to six adults, the Cocoon transforms a patio or dedicated outdoor relaxation area into a place to unwind and enjoy time together.
Unlike conventional inflatable hot tubs, the MSpa Cocoon Verto Series uses 10cm-thick, high-density EPE foam panels to create a rigid, self-supporting structure. This design helps the spa retain warmth while keeping the empty unit relatively lightweight at 95.7 pounds. The exterior features a soft, rug-like visual texture that gives the Cocoon a more residential appearance than a typical portable spa.
Designed for convenience as well as comfort, the Cocoon includes MSpa Link 2.0 app control, a 1350W heater, three adjustable air-massage intensity levels, UVC sanitization, smart filtration, and an automatic anti-icing system. With a 224-gallon water capacity and a maximum temperature of 104°F, it offers a practical combination of everyday relaxation, water management, and connected spa controls.
Key Features
Up to 6-Person Capacity
The Cocoon accommodates up to six adults, making it suitable for personal soaking, couples, or small gatherings.

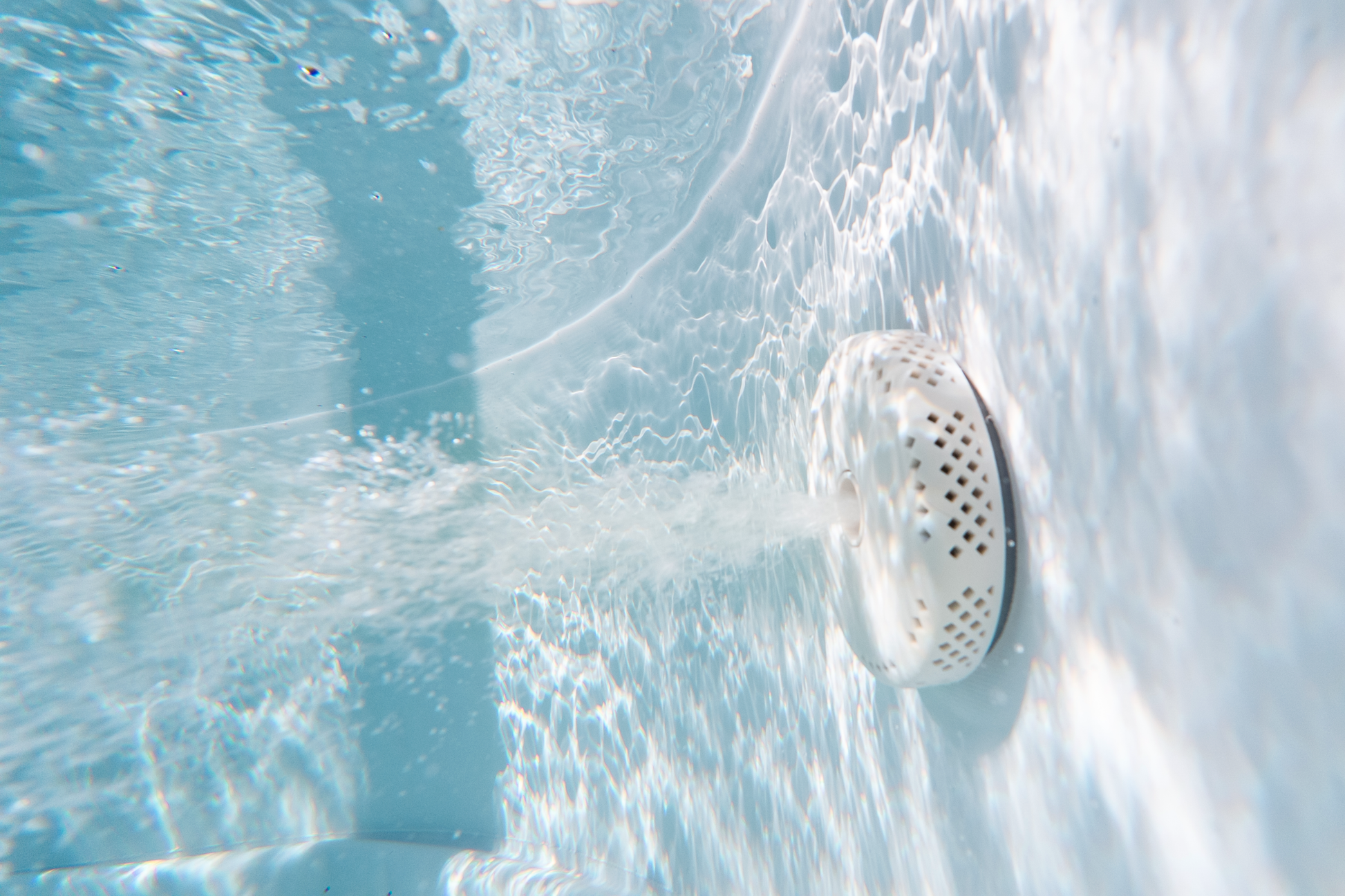

138 Air Massage Jets
An integrated air-bubbling system creates a surrounding massage experience with 138 air jets.
Three Adjustable Massage Levels
Choose from three air-massage power settings—300W, 450W, or 700W—to suit your preferred bubbling intensity.
Rigid EPE Foam Construction
High-density foam panels provide a self-supporting structure without relying on a conventional inflatable air chamber.
10cm-Thick Thermal Insulation
The foam panels create a substantial thermal barrier to help retain heated water temperature.
Textile-Inspired Exterior
A distinctive rug-like visual texture gives the spa a soft, contemporary appearance.
MSpa Link 2.0 App Control
Manage heating, filtration, sanitization, and scheduling from a compatible mobile device.
1350W Water Heater
The integrated heating system warms the water at a manufacturer-listed rate of approximately 2.3–3°F per hour under specified operating conditions.
104°F Maximum Water Temperature
The spa supports a maximum listed water temperature of 40°C (104°F).
Integrated UVC Sanitization
A built-in UVC system provides an additional water-treatment feature alongside filtration and appropriate spa water care.
Smart Filtration Reminders
The system provides maintenance reminders to help users stay on schedule with filter care.
Automatic Anti-Icing System
When the water temperature drops below 1°C, the system is designed to activate heating to bring the water to approximately 3°C.
Approximately 15-Minute Assembly
The manufacturer describes a two-person setup process taking approximately 15 minutes, using pre-slotted panels and a fitted sleeve.
Product Specifications
| Specification | Details |
|---|---|
| Brand | MSpa |
| Model | Cocoon |
| Series | Verto Series |
| Item Number | F-CO066WE |
| Product Type | Rigid Portable Hot Tub & Spa |
| Capacity | Up to 6 Adults |
| Exterior Diameter / Width | 70.9 in / 180 cm |
| Height | Approximately 26 in / 65 cm |
| Empty Weight | 95.7 lb / 43.4 kg |
| Filled Weight | Approximately 1,970 lb / 893 kg |
| Water Capacity | 224 Gallons / 850 Liters |
| Construction | High-Density EPE Foam Panels |
| Foam Panel Thickness | 10 cm |
| Massage System | Air Bubbling |
| Air Jets | 138 |
| Air Massage Power | 300W / 450W / 700W |
| Heater Power | 1350W |
| Heating Rate | Approximately 2.3–3°F per Hour |
| Maximum Water Temperature | 104°F / 40°C |
| Electrical Supply | 110–120V / 60Hz |
| Filtration Flow Rate | 1,800 Liters per Hour |
| Water Treatment | UVC Sanitization |
| Smart Controls | MSpa Link 2.0 |
| Freeze Protection | Automatic Anti-Icing System |
| Listed Certification | ETL Approved |
| Manufacturer-Listed Warranty | 12 Months for Electrical Parts and Spa Pool; 24 Months for Frame |

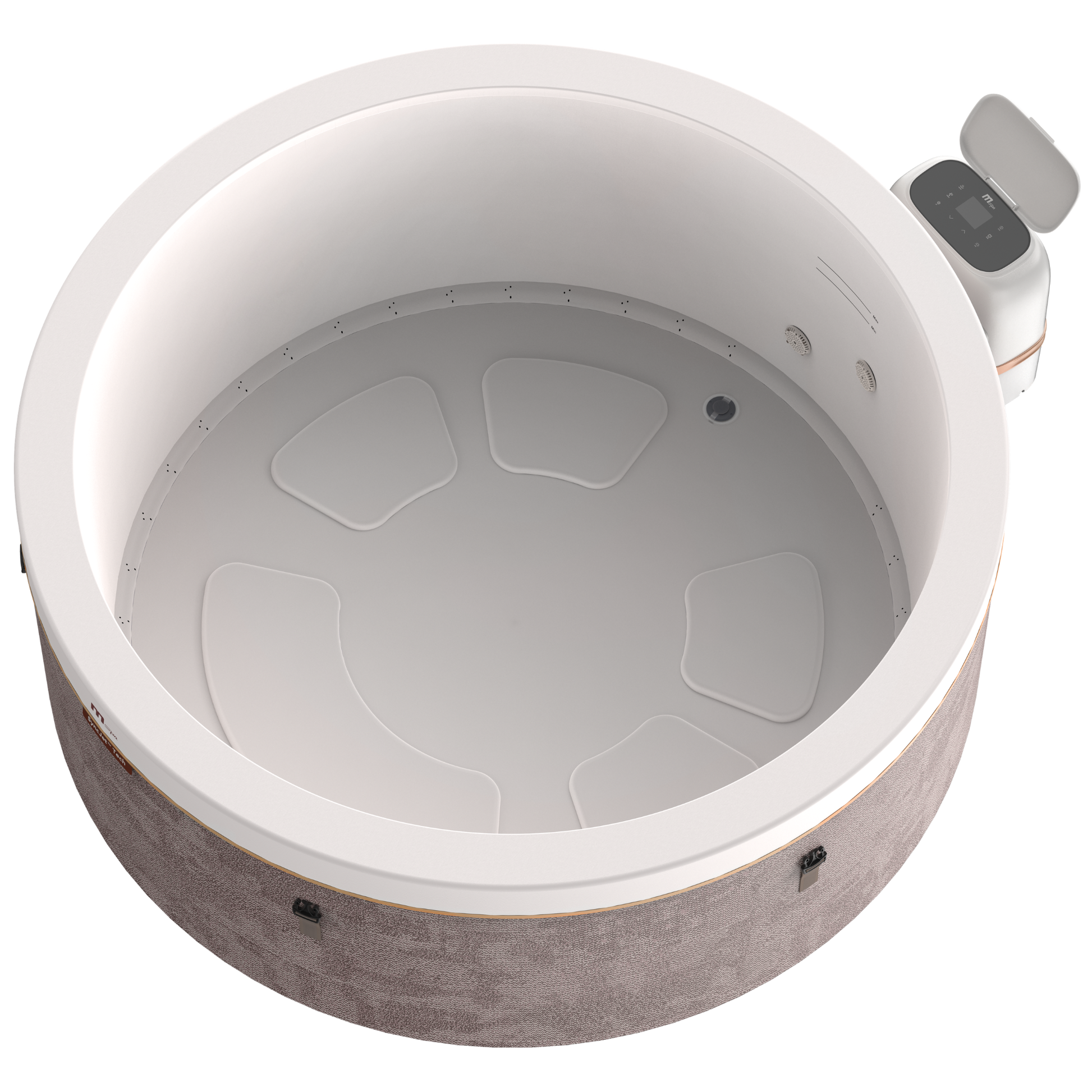

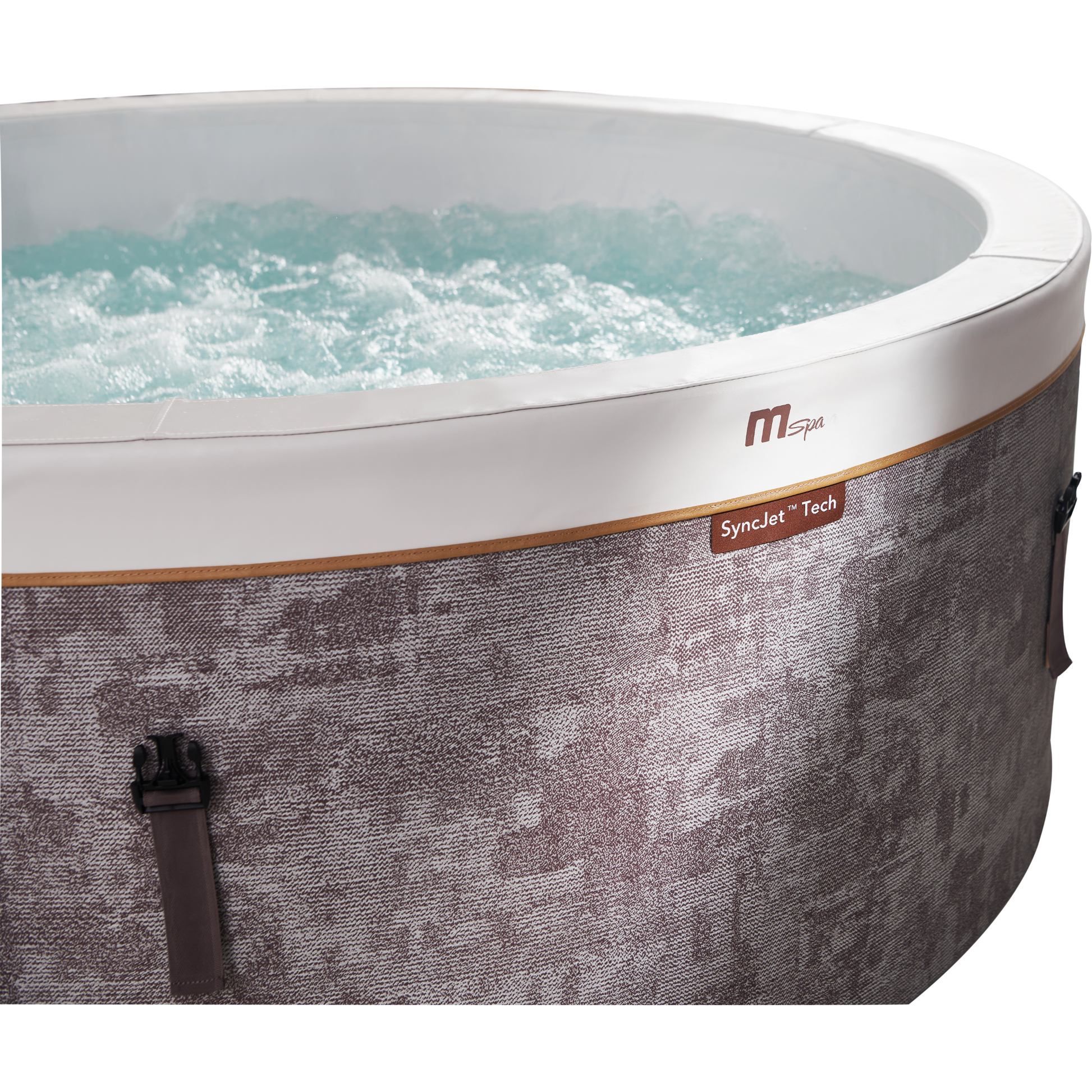

138-Jet Air Massage System
Surrounding Bubble Massage
The MSpa Cocoon uses 138 air jets to create a bubbling massage experience throughout the spa.
The air-bubbling system provides an enjoyable way to relax in warm water, whether you're soaking alone or sharing the spa with family and friends.
Three Massage Intensity Settings
Adjust the air-massage system according to your preference:
| Setting | Power |
|---|---|
| Level 1 | 300W |
| Level 2 | 450W |
| Level 3 | 700W |
The three levels allow you to choose a gentler bubbling sensation or a more energetic massage experience.
Designed for Everyday Relaxation
The air jets provide a convenient massage feature without requiring a separate handheld device or external accessory.
Rigid Foam Construction and Thermal Insulation

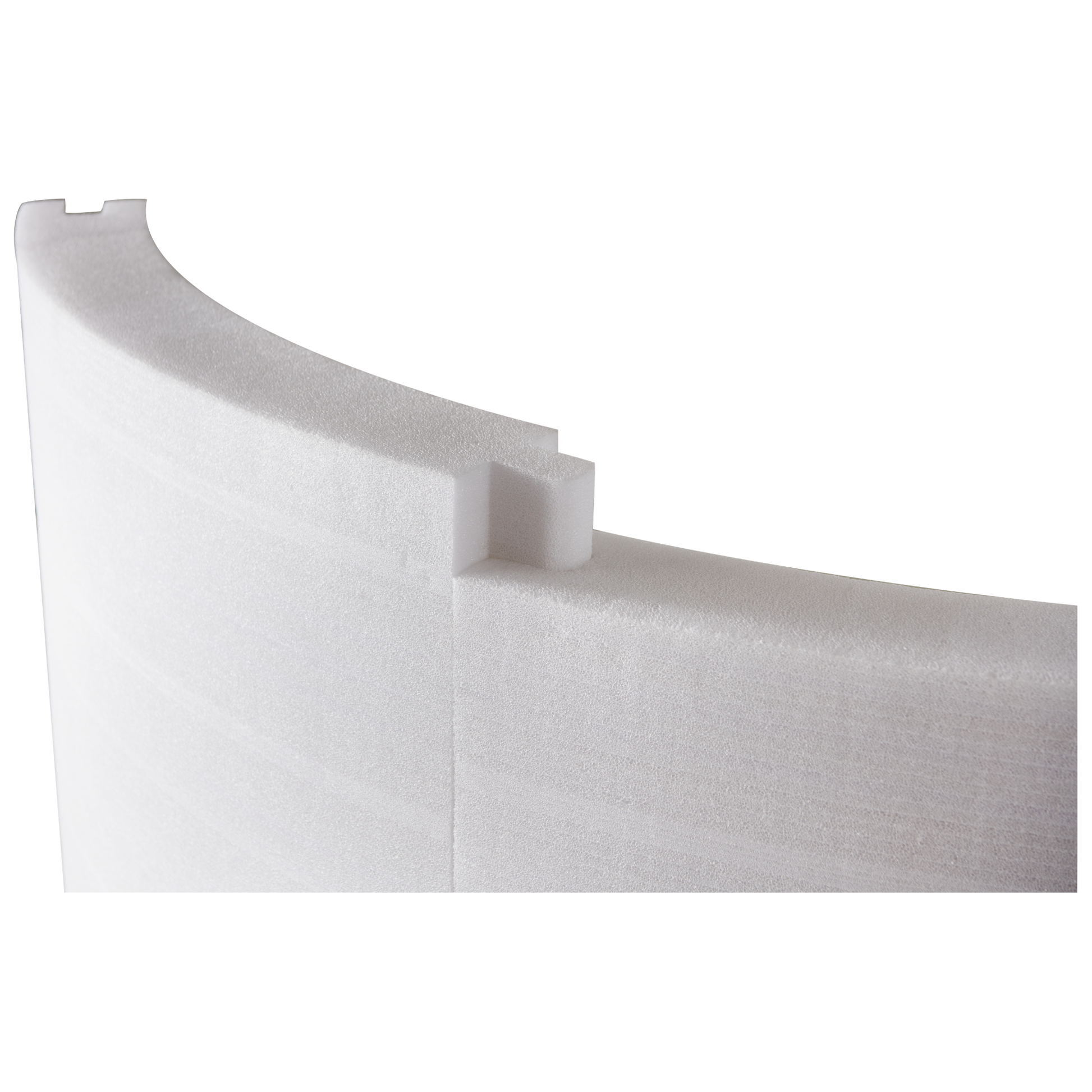

10cm High-Density EPE Foam Panels
The Cocoon uses thick EPE foam panels to form a rigid, self-supporting body.
Unlike a conventional inflatable spa, its shape is maintained by the foam-panel structure.
Designed to Retain Warmth
The insulated panels help reduce heat loss to the surrounding environment.
Lightweight When Empty
Despite its rigid design, the Cocoon weighs approximately 95.7 pounds when empty.
Thermal Efficiency
The manufacturer reports laboratory testing showing heating performance of up to 2.6°C per hour under certain conditions.
The listing also describes potential daily energy consumption as low as 3–6 kWh. Actual energy use will vary with outdoor temperature, starting water temperature, operating schedule, insulation conditions, and frequency of use.
Comfortable Exterior Appearance
The textile-inspired finish gives the Cocoon a distinctive appearance suited to a thoughtfully arranged outdoor wellness space.
MSpa Link 2.0 Smart App Control
Control Your Spa From Your Phone
The MSpa Link 2.0 app provides connected access to several spa functions.
Manage Heating
Adjust or schedule heating according to your planned soaking routine.
Control Water Maintenance Features
The app supports management of filtration and sanitization functions.
Create Personalized Schedules
Set operating schedules to fit your routine rather than manually preparing the spa each time.
Intelligent Scheduling
The manufacturer describes an automatic calculation feature intended to help prepare the spa for a selected time.
Convenient Connected Operation
The app provides an additional way to manage the spa alongside its integrated control system.
App functionality depends on compatible devices, connectivity, and the manufacturer's current software support.
1350W Heating System
Adjustable Warm Water Experience
The Cocoon includes a 1350W heater designed to bring the water to your preferred soaking temperature.
Maximum Temperature of 104°F
The manufacturer lists a maximum water temperature of 40°C (104°F).
Published Heating Rate
The specified heating rate is approximately 2.3–3°F per hour.
Actual heating performance will vary depending on ambient temperature, initial water temperature, and operating conditions.
Insulated Heat Retention
The 10cm foam-panel construction complements the heating system by helping limit heat loss.
Plan Ahead for Your Soak
The MSpa Link 2.0 scheduling features allow you to plan heating around your intended spa use.
UVC Sanitization and Smart Filtration
Integrated UVC Sanitization
The Cocoon incorporates a built-in UVC system as part of its water-treatment design.
UVC light is used within the system to provide an additional sanitization step.
Smart Filtration System
The spa includes a filtration pump with a manufacturer-listed circulation flow rate of 1,800 liters per hour.
Maintenance Reminders
The smart filtration system provides reminders to help users keep up with filter maintenance.
Filter Care Guidance
The product listing recommends cleaning the filter cartridge after each use and replacing it every three to five days.

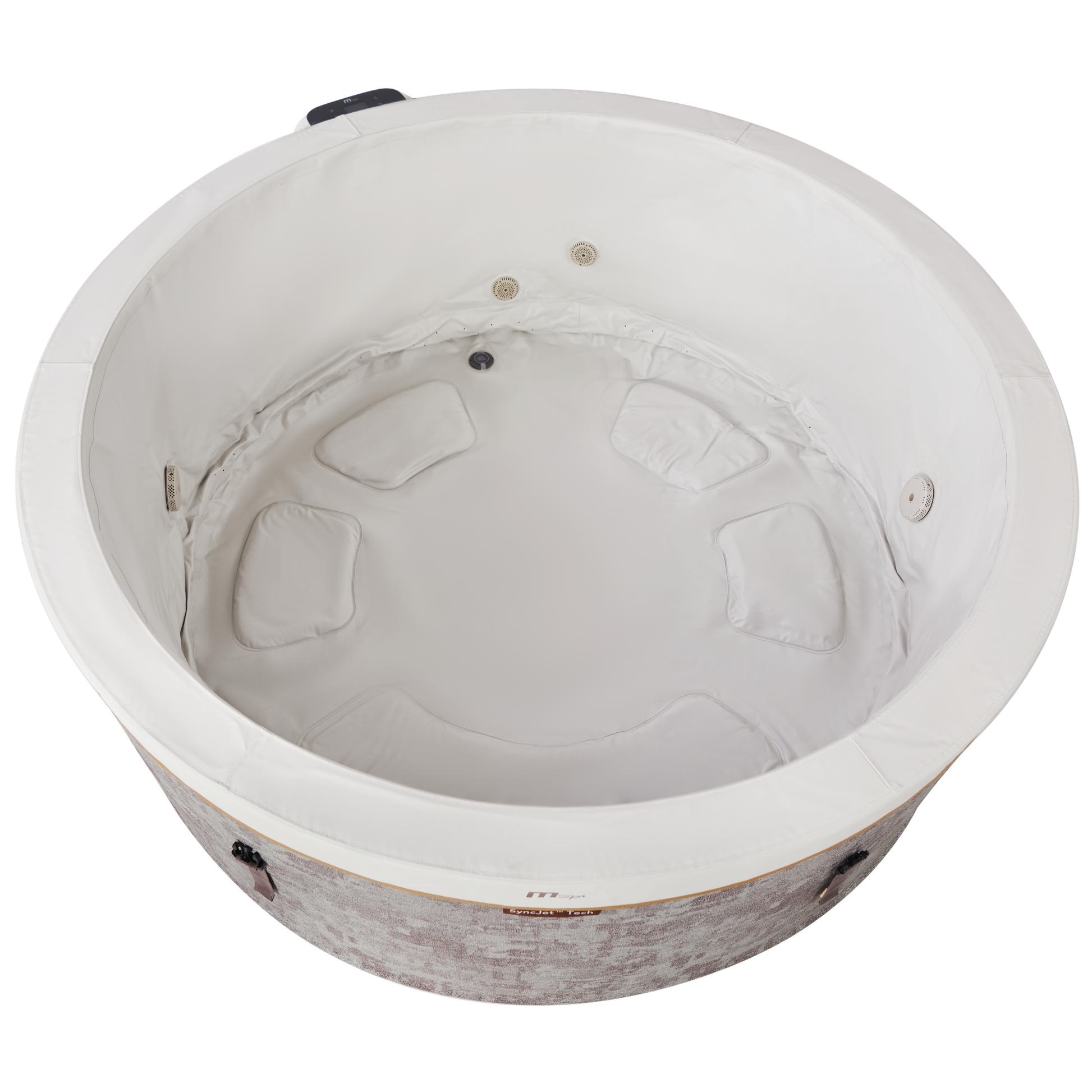

Antibacterial Inner Liner
The manufacturer describes the inner liner as incorporating antibacterial fabric intended to reduce bacterial reproduction on the treated material.
Maintain Proper Water Chemistry
UVC treatment and antibacterial materials do not eliminate the need for appropriate water testing, chemical sanitization, filtration, and routine spa maintenance. Always follow the manufacturer's water-care instructions.
Automatic Anti-Icing System
Cold-Weather Protection Feature
The Cocoon includes an automatic anti-icing system designed to help protect the spa and control box during low-temperature conditions.
Temperature-Activated Heating
When the water temperature falls below approximately 1°C, the system is designed to activate heating until the water reaches approximately 3°C.
Additional Equipment Protection
This feature is intended to reduce freezing-related risks when the system is powered and operating correctly.
Follow Winterization Instructions
The anti-icing system is not a guarantee against freeze damage. Follow the manufacturer's instructions for cold-weather use, power interruptions, draining, and winter storage.

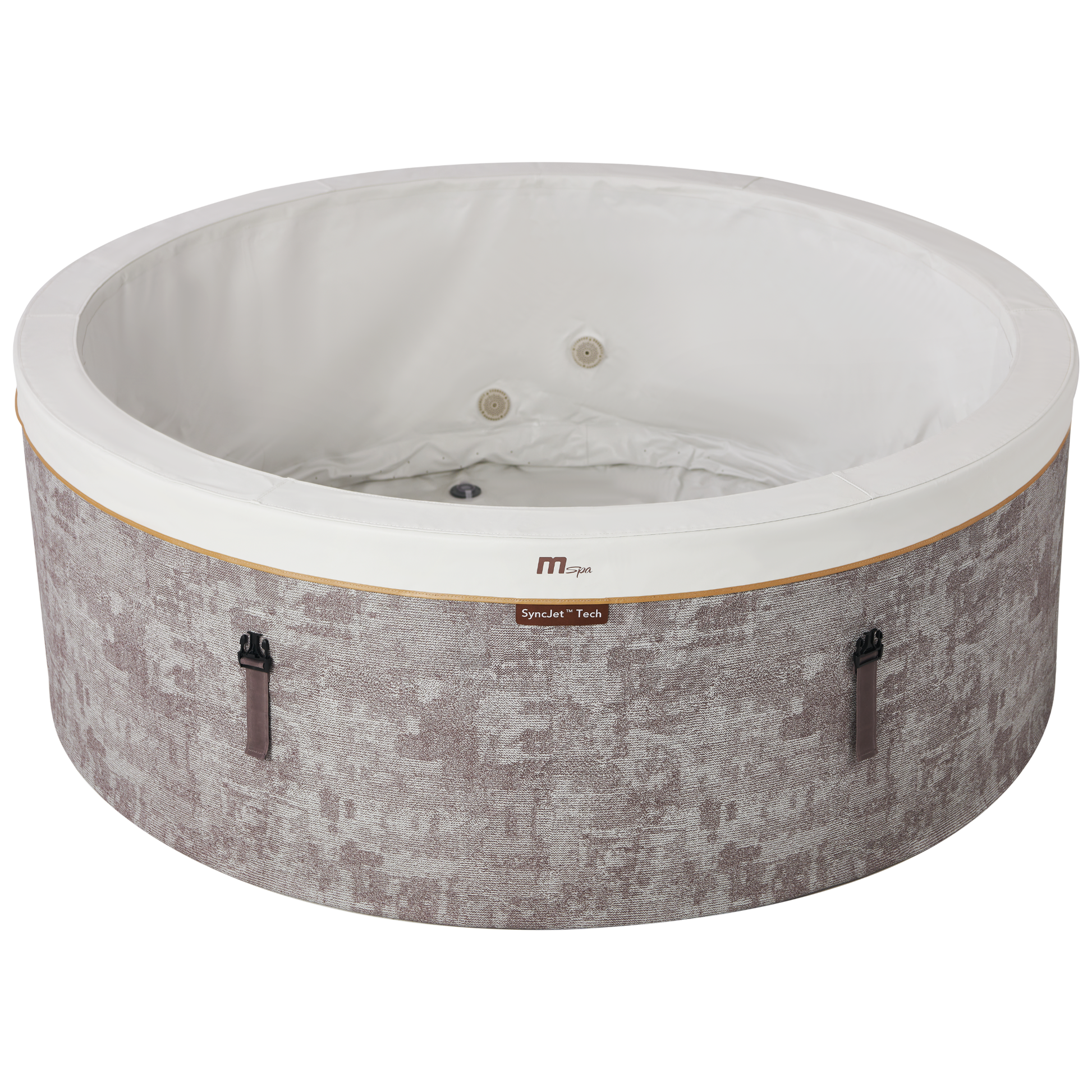

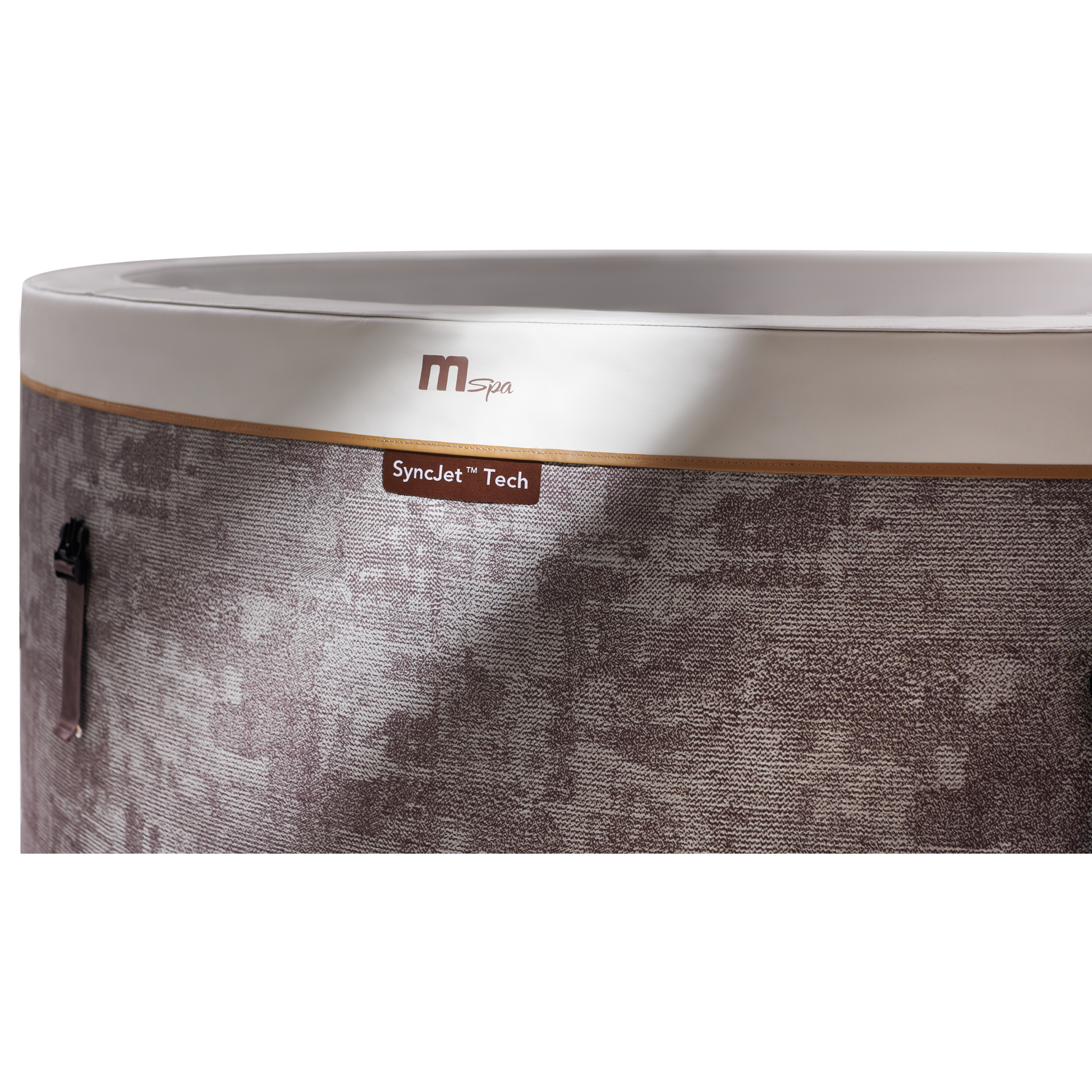

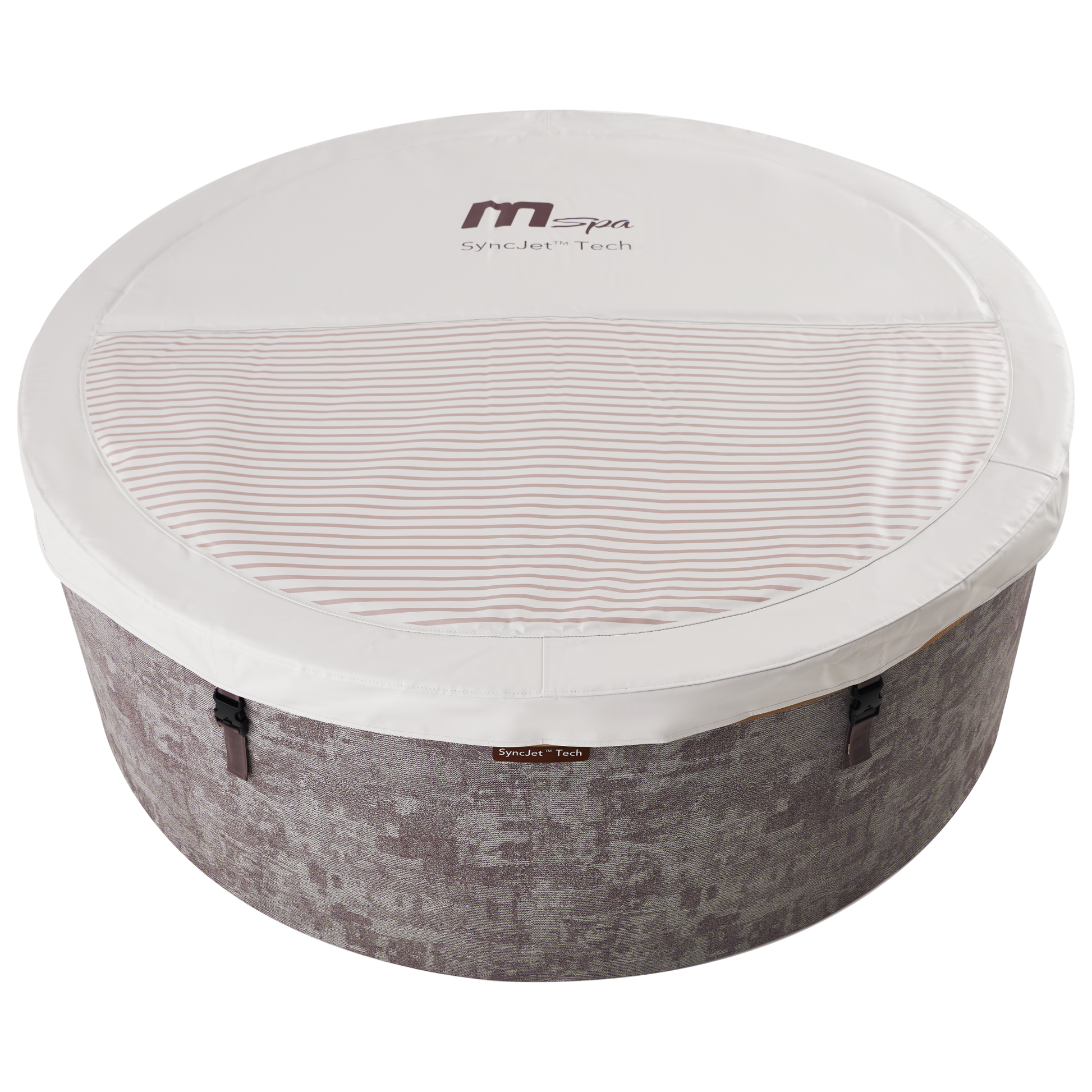

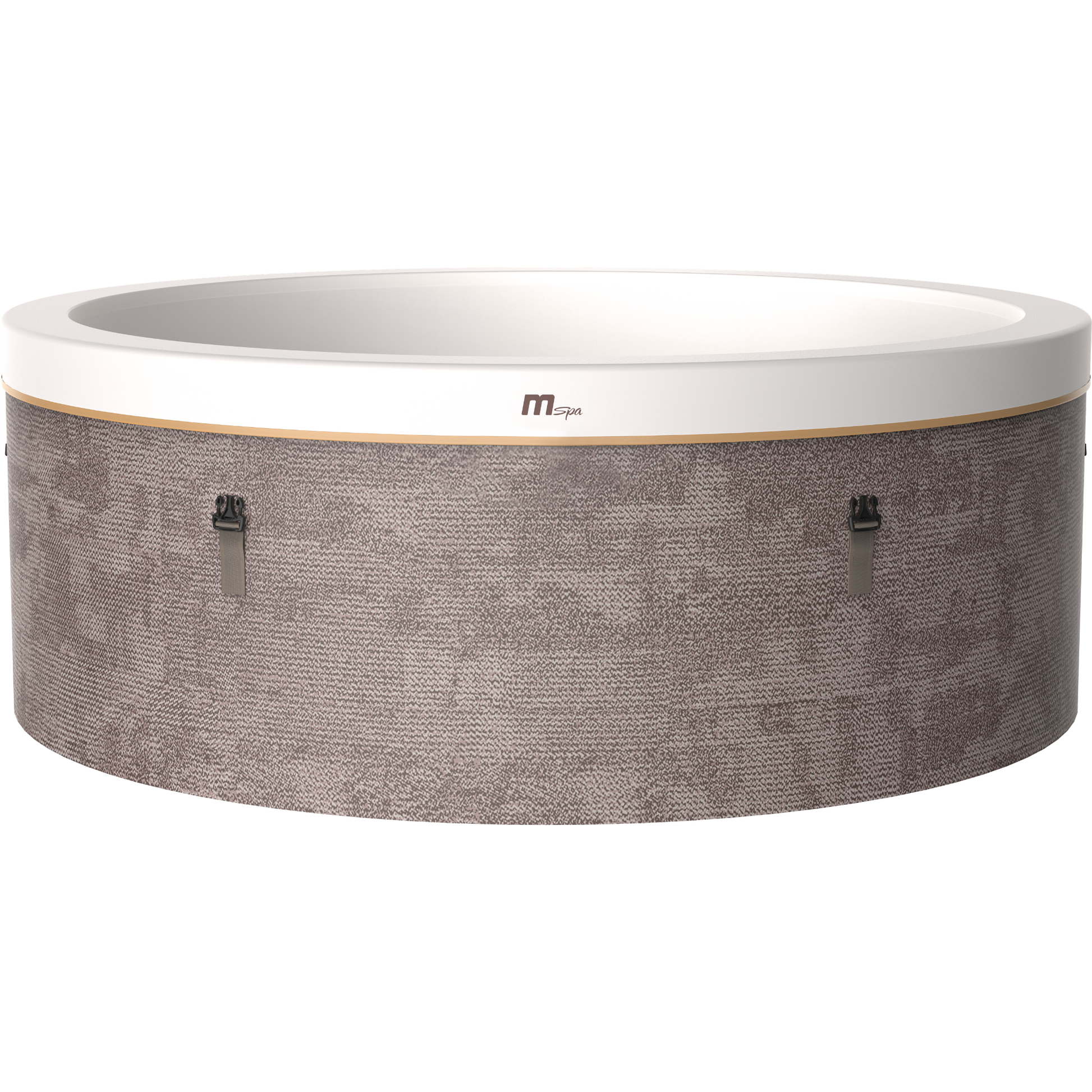

Textile-Inspired Verto Series Design
Distinctive Exterior Finish
The Cocoon features a textile-inspired outer surface with a cozy, rug-like visual texture.
Contemporary Outdoor Styling
The exterior is designed to feel more like a considered piece of outdoor furniture than a conventional portable hot tub.
Defined Rigid Shape
The foam-panel construction maintains a consistent, structured appearance.
Part of the Verto Series
MSpa describes the Verto Series as combining practical insulation, lightweight construction, and materials selected with energy efficiency in mind.
Quick Two-Person Assembly
Pre-Slotted Foam Panels
The Cocoon uses pre-slotted panels intended to simplify assembly.
Self-Supporting Structure
The rigid foam panels create the spa's shape without requiring conventional air inflation.
Precision-Fit Outer Sleeve
The manufacturer describes a fitted sleeve designed to wrap the panel structure with minimal alignment.
Approximately 15-Minute Setup
MSpa states that two people can assemble the spa structure in approximately 15 minutes.
This estimate does not include filling the spa, heating the water, preparing the electrical connection, or completing water-care procedures.
Dimensions and Space Planning
| Measurement | Specification |
|---|---|
| Width | 70.9 in / 180 cm |
| Height | Approximately 26 in / 65 cm |
| Water Capacity | 224 gallons |
| Empty Weight | 95.7 lb |
| Filled Weight | Approximately 1,970 lb |
| Capacity | Up to 6 Adults |

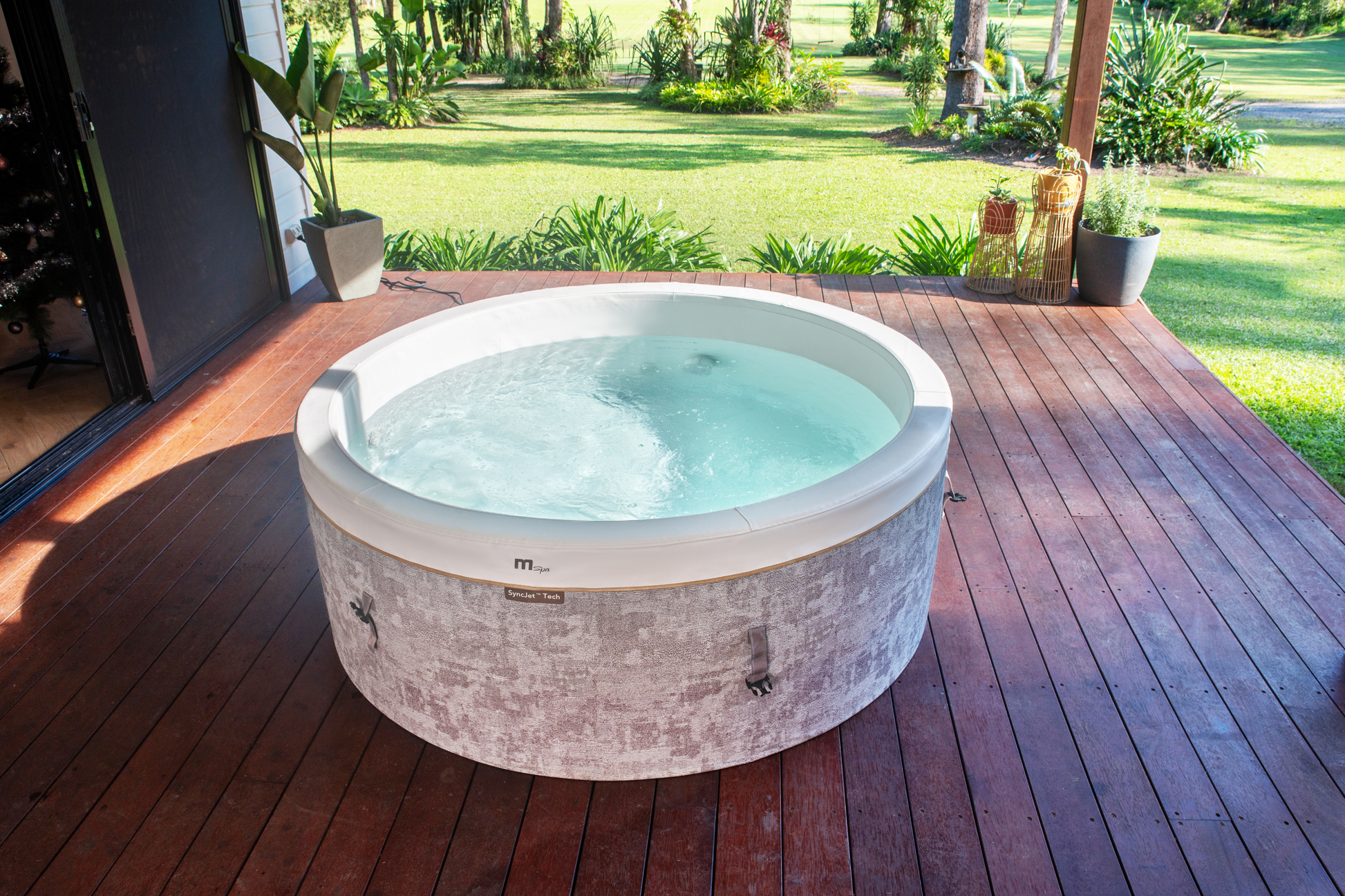

Choose a Suitable Surface
Install the spa on a stable, level surface capable of supporting the full filled weight, occupants, and any additional loads.
Allow Room for Access
Leave sufficient space for entering the spa, accessing the control box, and performing maintenance.
Consider the Filled Weight
At approximately 1,970 pounds when filled, the Cocoon requires appropriate structural support. Deck installations should be evaluated for the complete operating load, including bathers.
Plan for Water Access and Drainage
Choose a location where the spa can be filled, drained, and maintained according to the manufacturer's instructions.
Electrical Requirements
110–120V / 60Hz Operation
The Cocoon has a manufacturer-listed control system voltage of 110–120V at 60Hz.
1350W Heater
The water-heating system has a published rating of 1350 watts.
Adjustable Air Massage Power
The air-massage system has three published power levels: 300W, 450W, and 700W.
Verify the Electrical Connection
The product listing does not specify the required circuit amperage, plug configuration, or whether heating and maximum massage output can operate simultaneously.
Review the manufacturer's installation manual and have a qualified electrician confirm the correct electrical supply and protection before use.
Follow Outdoor Electrical Safety Requirements
Use only an approved electrical installation suitable for a water-filled spa and follow all manufacturer instructions and applicable electrical codes.

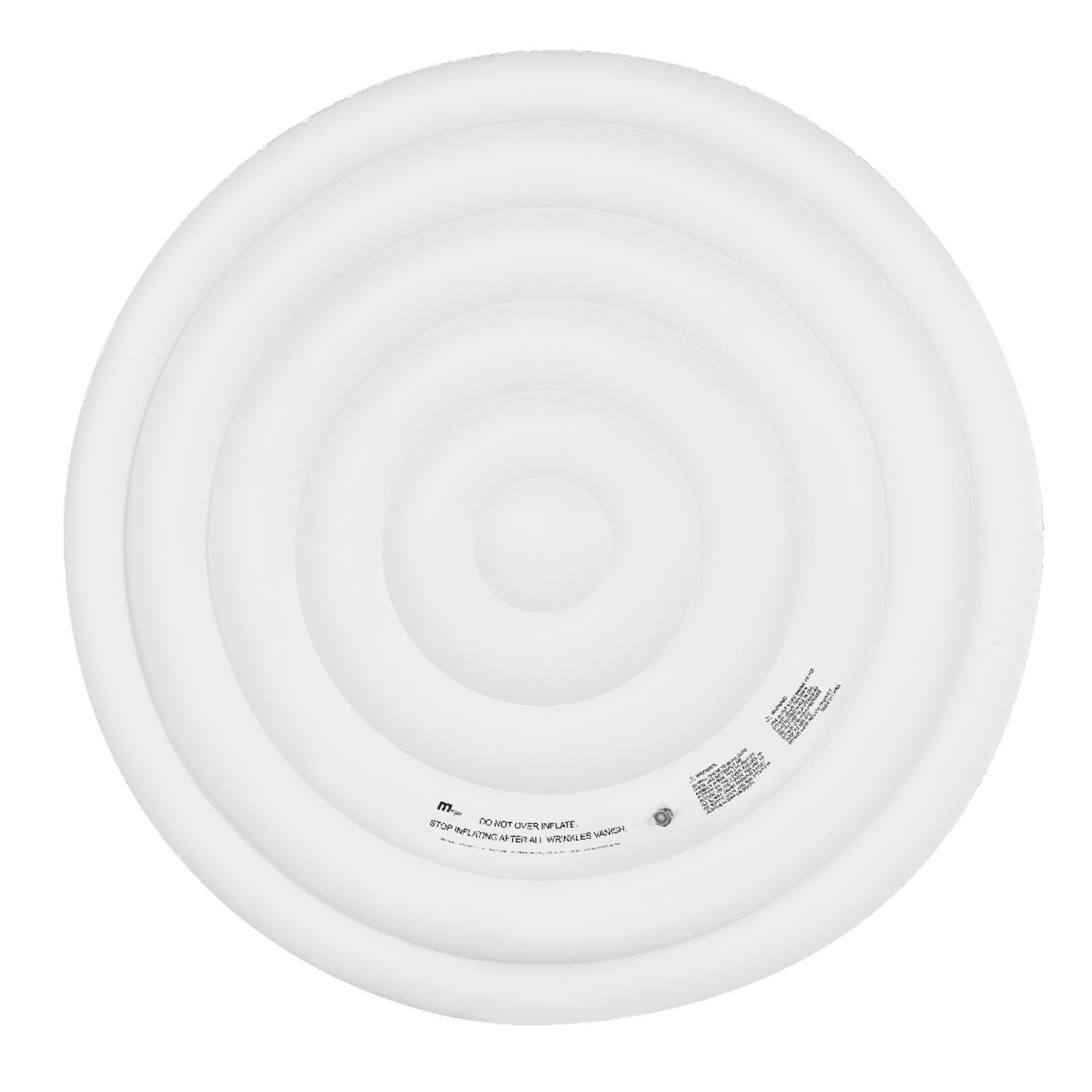

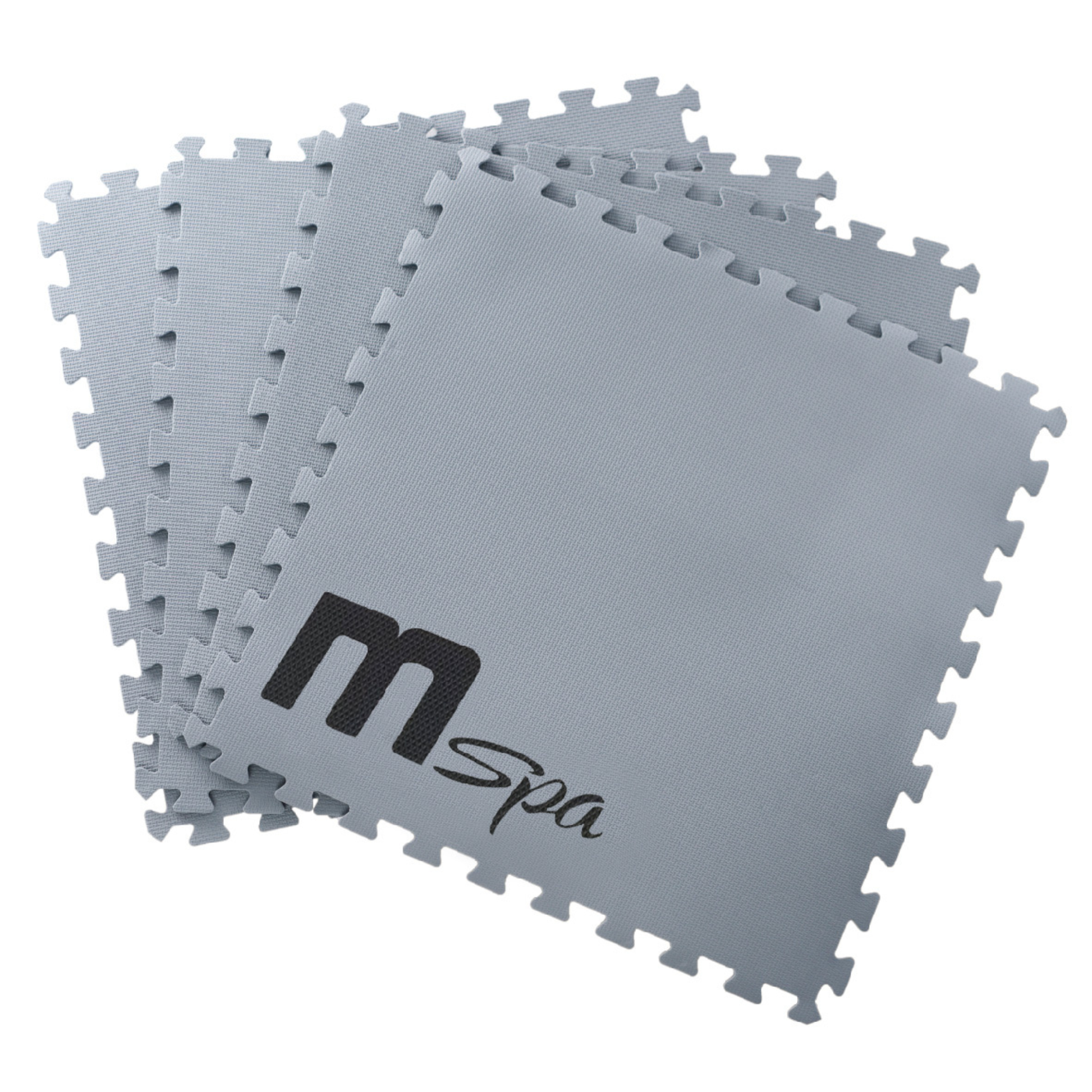

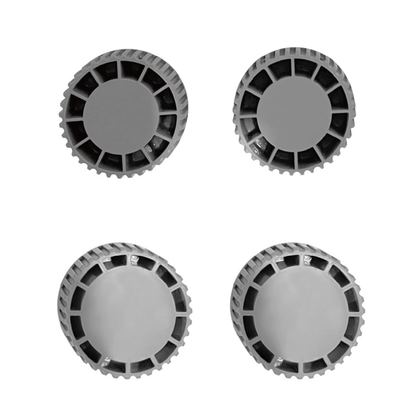

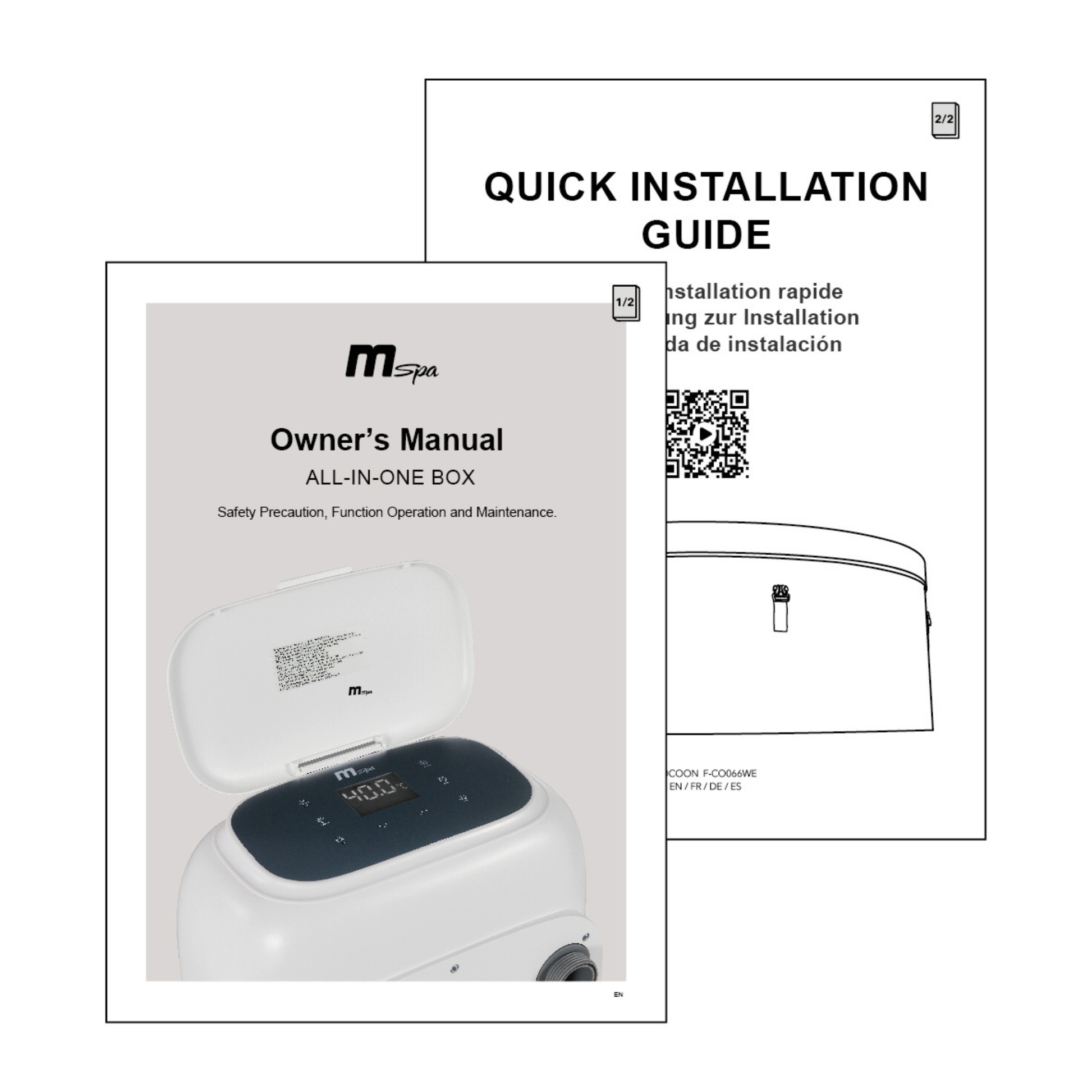

What's Included
The product listing confirms the Cocoon spa system with its rigid foam-panel construction, integrated heating and air-massage functions, control system, filtration, and UVC sanitization.
The product page includes a "What's in the Box" section presented as an image, but the available text does not provide a complete, verifiable accessory inventory.

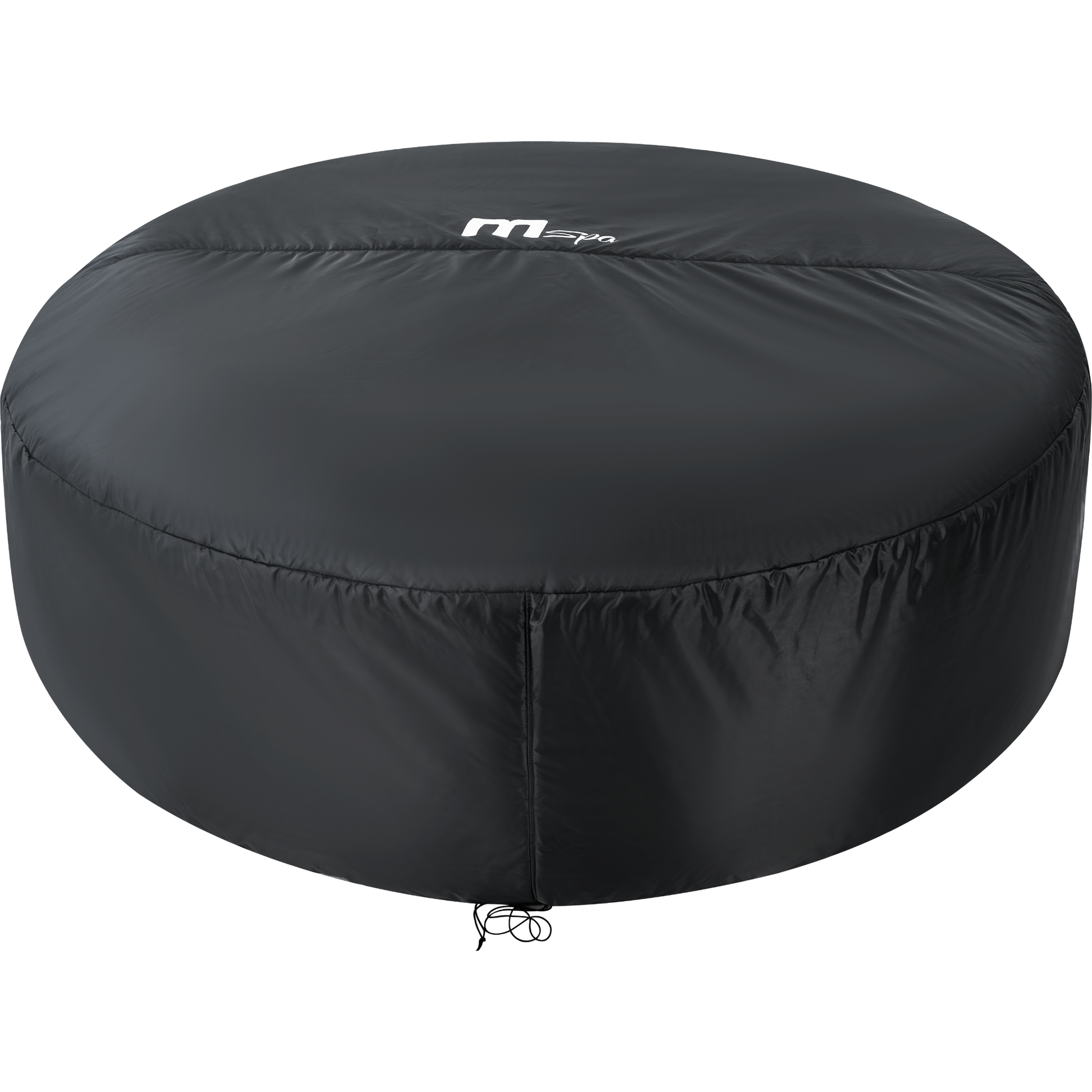

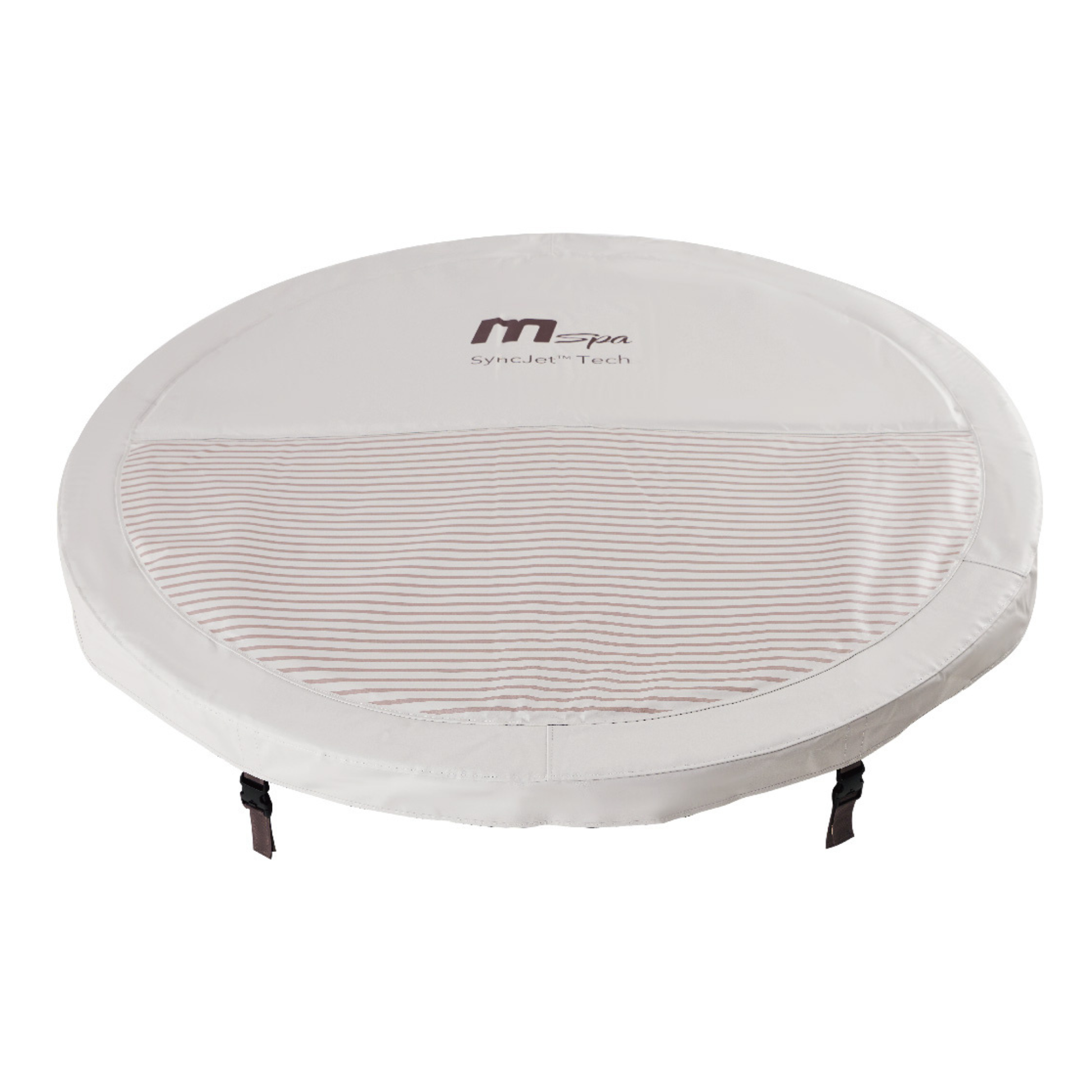

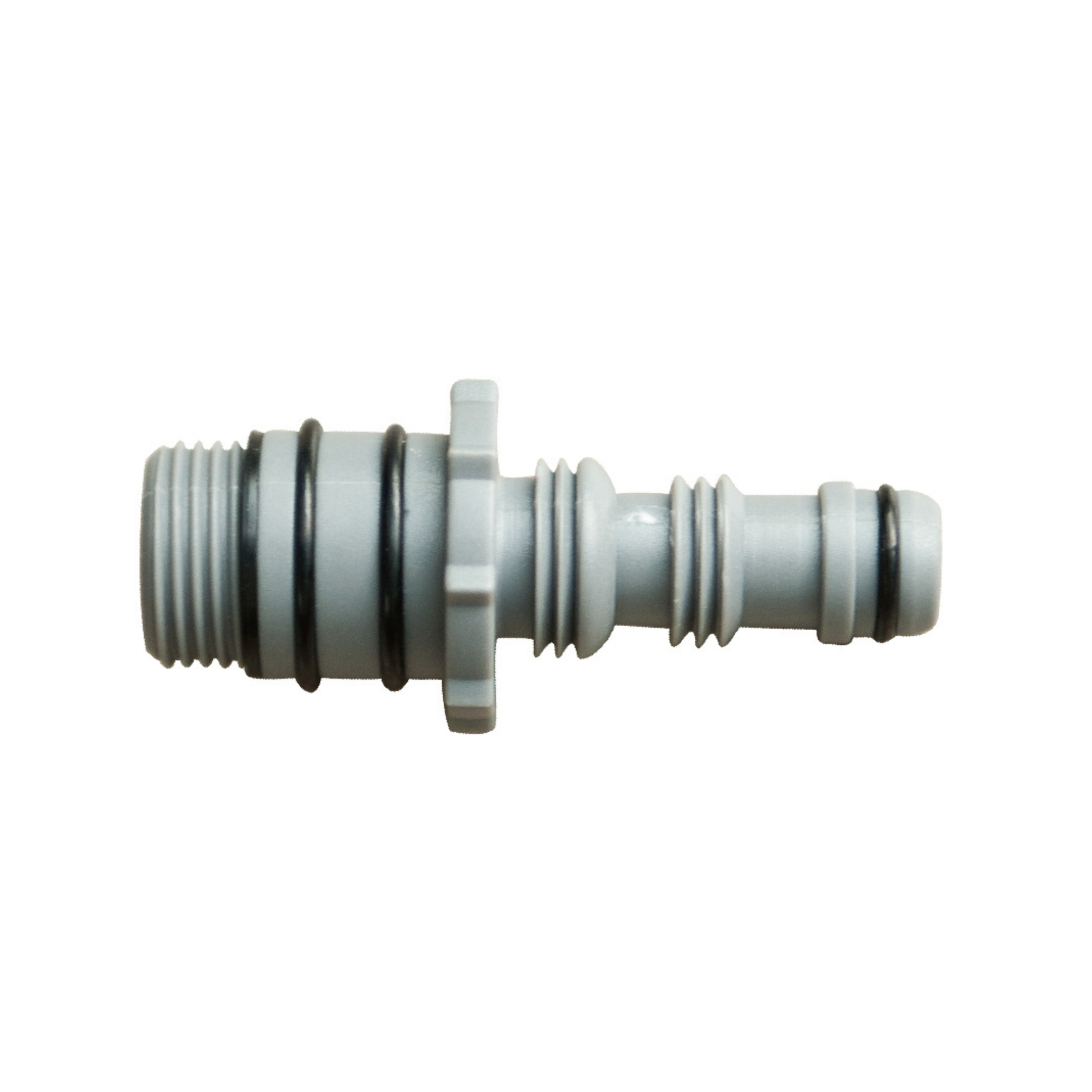

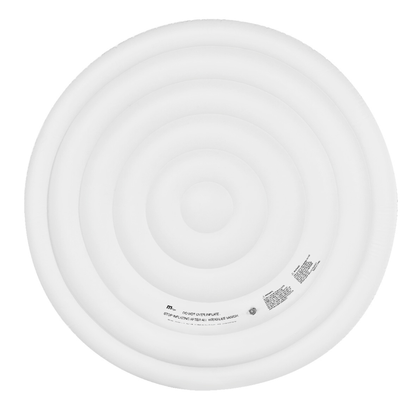

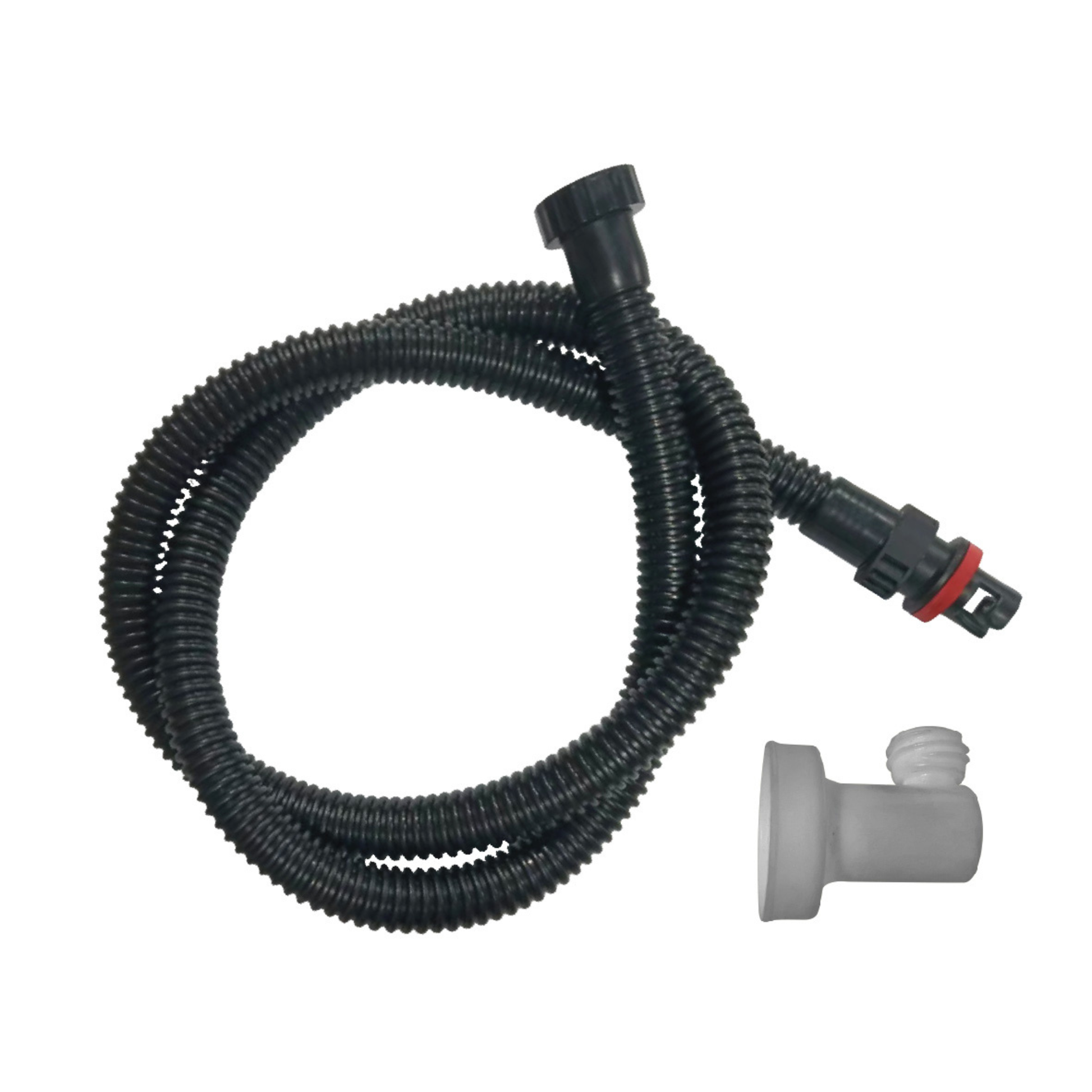

Confirm the supplied cover, filter cartridges, ground protection, hoses, and other accessories against the manufacturer's current packing list before purchase.

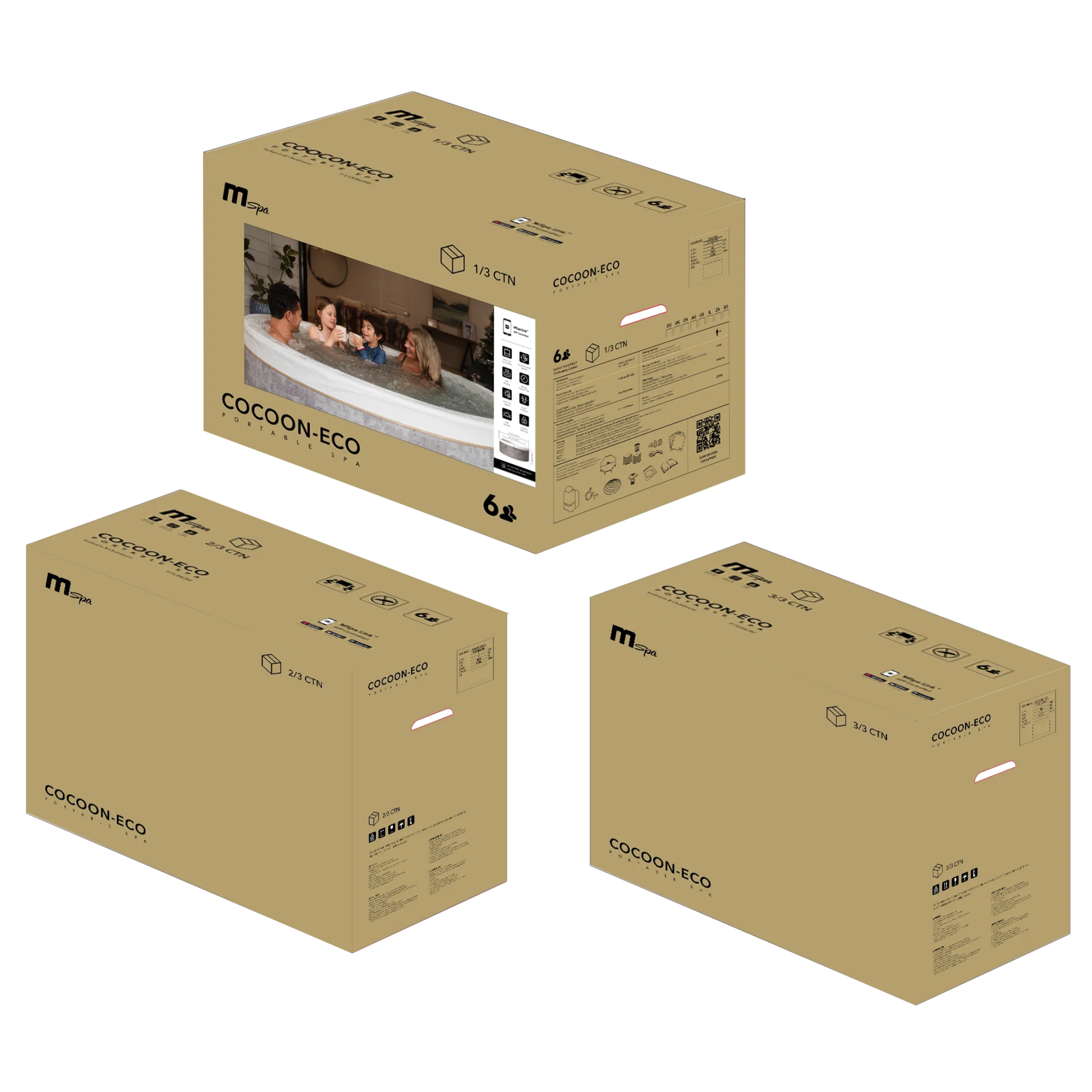

Shipping Information

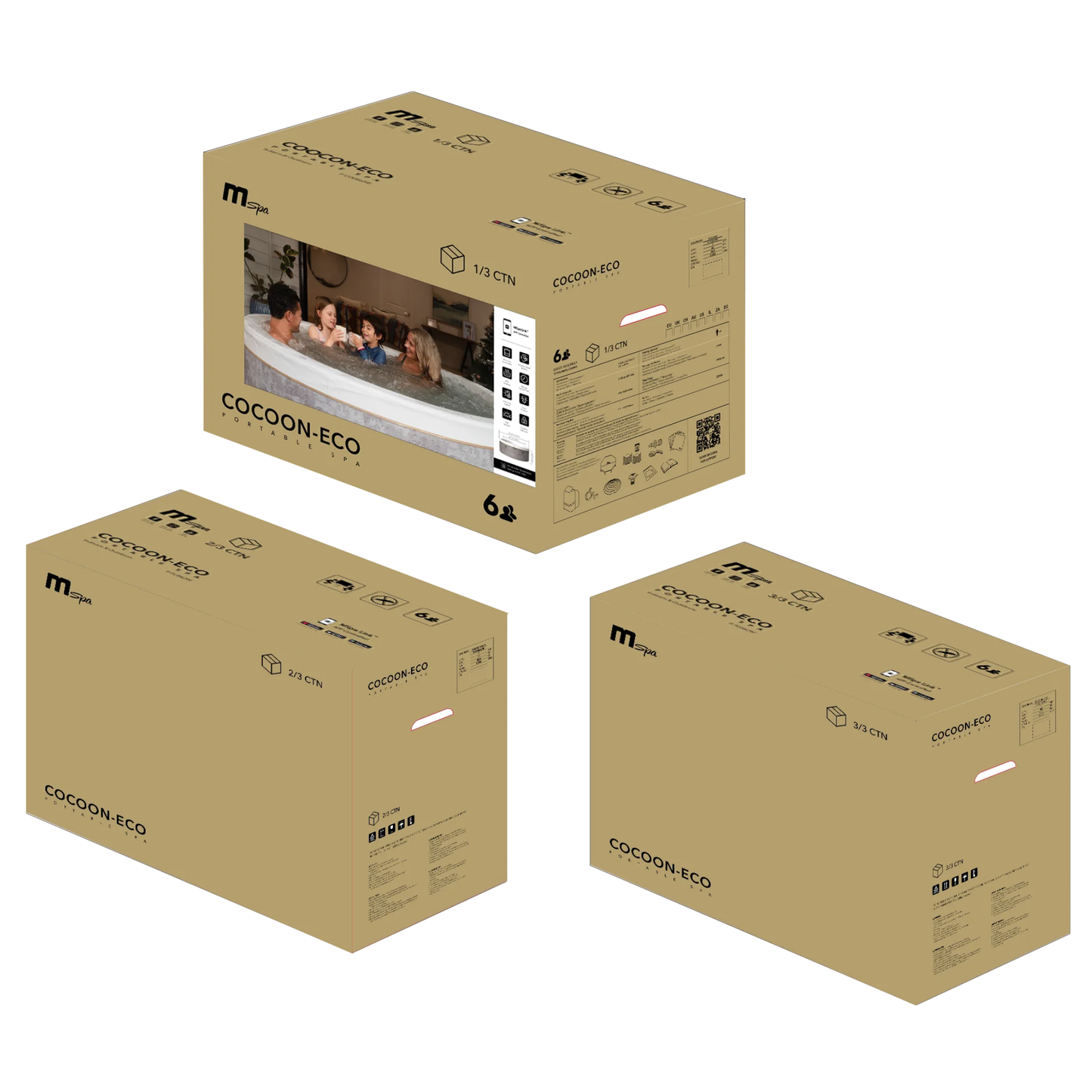

The product listing identifies three package dimensions:
| Package | Dimensions |
|---|---|
| Box 1 | 31.5 × 22.2 × 24.2 in |
| Box 2 | 30.9 × 20.5 × 29.5 in |
| Box 3 | 30.9 × 21.1 × 27.4 in |
Verify delivery access and allow sufficient space for unpacking and assembly.
Manufacturer Warranty
The product listing identifies the following manufacturer's warranty periods:
12 Months
Electrical components and spa pool.
24 Months
Frame.
Warranty coverage, exclusions, claim procedures, and replacement eligibility are governed by the manufacturer's official warranty terms.
Care and Maintenance

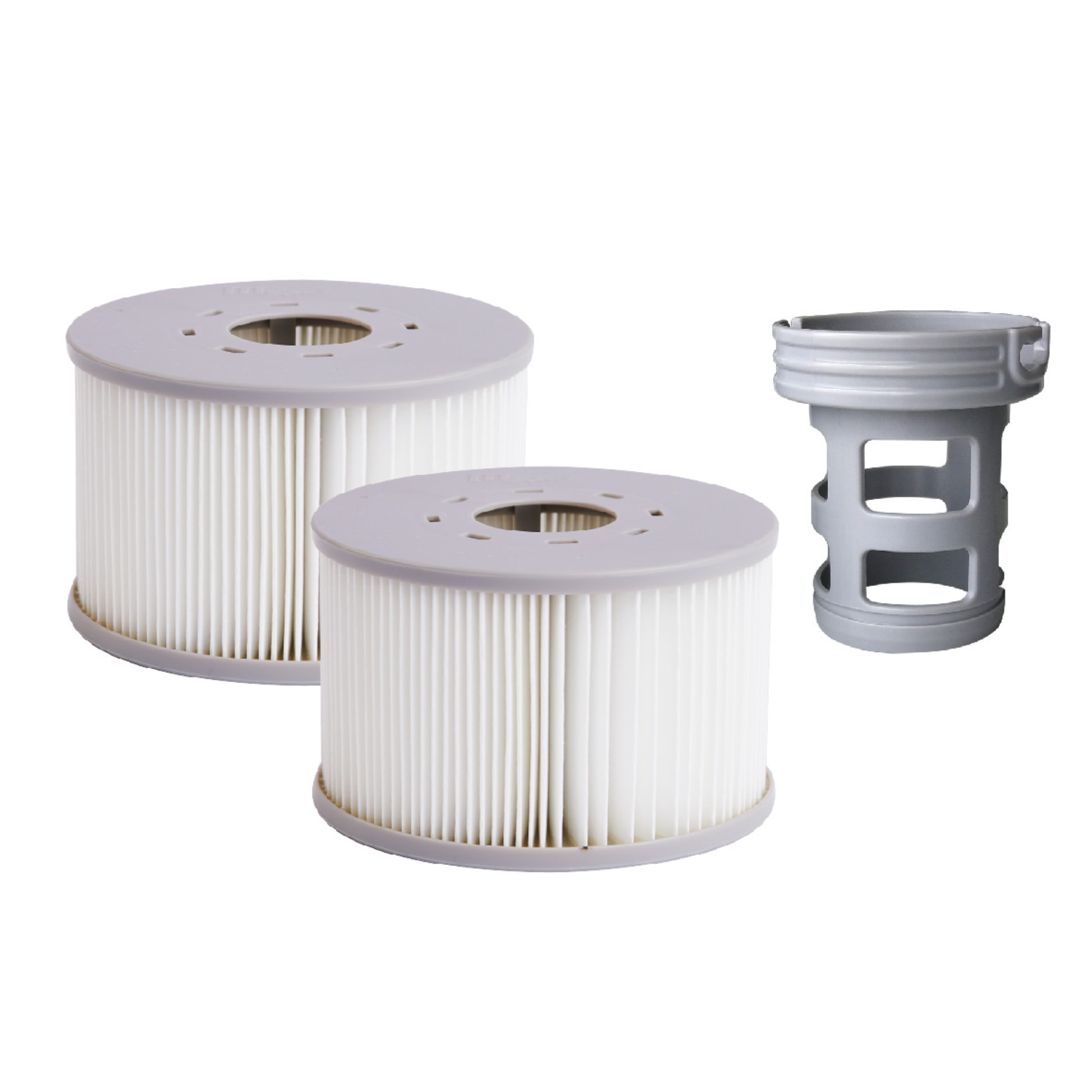

Clean the Filter Cartridge
Follow the manufacturer's recommendation to clean the filter after each use.
Replace Filters as Directed
The product listing recommends replacement every three to five days.

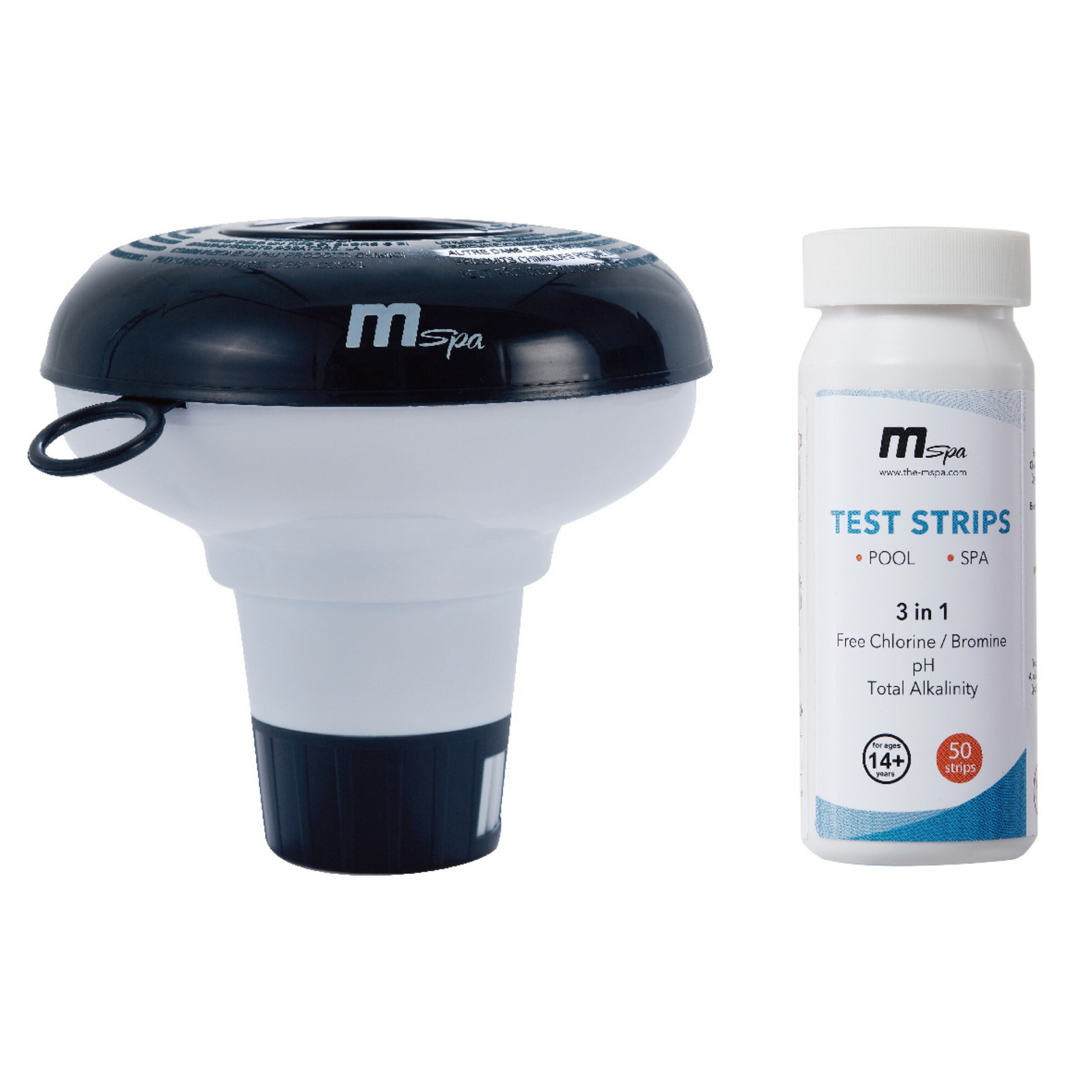

Maintain Water Chemistry
Test and treat spa water according to the manufacturer's requirements for sanitizer levels, pH, and water balance.
Keep the UVC System Maintained
Follow the manufacturer's instructions for inspecting and servicing the UVC sanitization system.
Clean the Inner Liner
Use approved cleaning methods to maintain the spa's interior surfaces.
Protect the Spa From Freezing
Follow the manufacturer's cold-weather and winterization instructions, even when using the automatic anti-icing system.
Inspect the Foam Panels and Sleeve
Check the rigid structure and exterior covering for visible damage before use.
Follow Safe Soaking Practices
Avoid excessive water temperatures and prolonged heat exposure. Observe the manufacturer's recommendations for session duration and maximum occupancy.
Frequently Asked Questions
How many people can fit in the MSpa Cocoon Verto Series?
The Cocoon is designed to accommodate up to six adults. Its exterior width is approximately 70.9 inches, and it holds up to 224 gallons of water.
Is the MSpa Cocoon inflatable?
No. The Cocoon uses a rigid, self-supporting structure made from high-density EPE foam panels. This distinguishes it from conventional inflatable hot tubs.
How many massage jets does the Cocoon have?
The spa features 138 air jets with three adjustable massage power levels: 300W, 450W, and 700W.
How hot does the MSpa Cocoon get?
The manufacturer lists a maximum water temperature of 104°F (40°C).
How quickly does the Cocoon heat water?
The published heating rate is approximately 2.3–3°F per hour. Actual performance depends on ambient temperature, starting water temperature, and operating conditions.
Can I control the Cocoon from my phone?
Yes. The MSpa Link 2.0 app supports connected control of heating, filtration, sanitization, and operating schedules.
Does the Cocoon include a water sanitization system?
Yes. The Cocoon features integrated UVC sanitization and a smart filtration system. Proper chemical water treatment and routine maintenance are still required.
Does the Cocoon have freeze protection?
Yes. The anti-icing system is designed to activate heating when water falls below approximately 1°C and warm it to around 3°C. This does not replace proper winterization or protect against all freezing conditions.
How long does assembly take?
MSpa describes an approximately 15-minute assembly process with two people. Filling, heating, electrical preparation, and water treatment require additional time.
How much does the Cocoon weigh when filled?
The manufacturer lists a filled weight of approximately 1,970 pounds. This figure should be considered alongside the additional weight of occupants when evaluating the installation surface.
What is the warranty?
The manufacturer lists a 12-month warranty for electrical components and the spa pool, plus a 24-month warranty for the frame, subject to the official warranty terms.
